- Place of Origin: ShenZhen
- Brand Name: DETECTOR ZK
- Model Number: ZK-8065

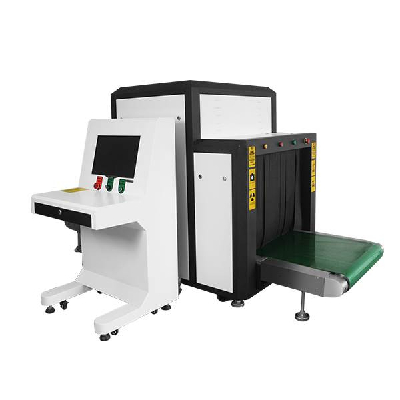

X-Ray 8065A
Basic Parameter
Channel Size :800mm（W）×650 mm（H）
Conveyor speed: 0.22 m/s
Conveyor Max Load: 170 kg
Discrimination of metal lines in diameter 0.0787mm
Reset time of 0.5 seconds automatic
13mm steel penetration
Leakage radiation <0.05µGy/h
Through rate of 720/h
X-ray generator
Ray beam direction of the bottom-illuminated
Tube current of 0.4~1.2mA（adjustable）
Tube voltage 100~160 kV（adjustable）
Ray beam divergence angle of 60°
Cooling/Duty Cycle sealed oil cooling/100％
Material Resolution
Gray-scale resolution can distinguish between the thickness of 1mm-60mm thickness deviation of not less than 1mm aluminum ladder
Mixture resolution can distinguish between1mm-60mm thickness of aluminum and give the green with different saturation
Effective resolution can distinguish between materials,1.5mm/2.0mm and 2.5mm thickness of steel plate behind the three types have the same X-ray at tenuation and were given green and blue.
Operatioin Environment
Operating temperature／humidity0℃～45℃／20%～95% (no condensation)
Keep the temperature／humidity-20℃～60℃／20%～95% (no condensation)
Operating Voltage 220VAC(±10%) 50±3Hz
Power loss: 1.0KW
Noise level: <55dB
